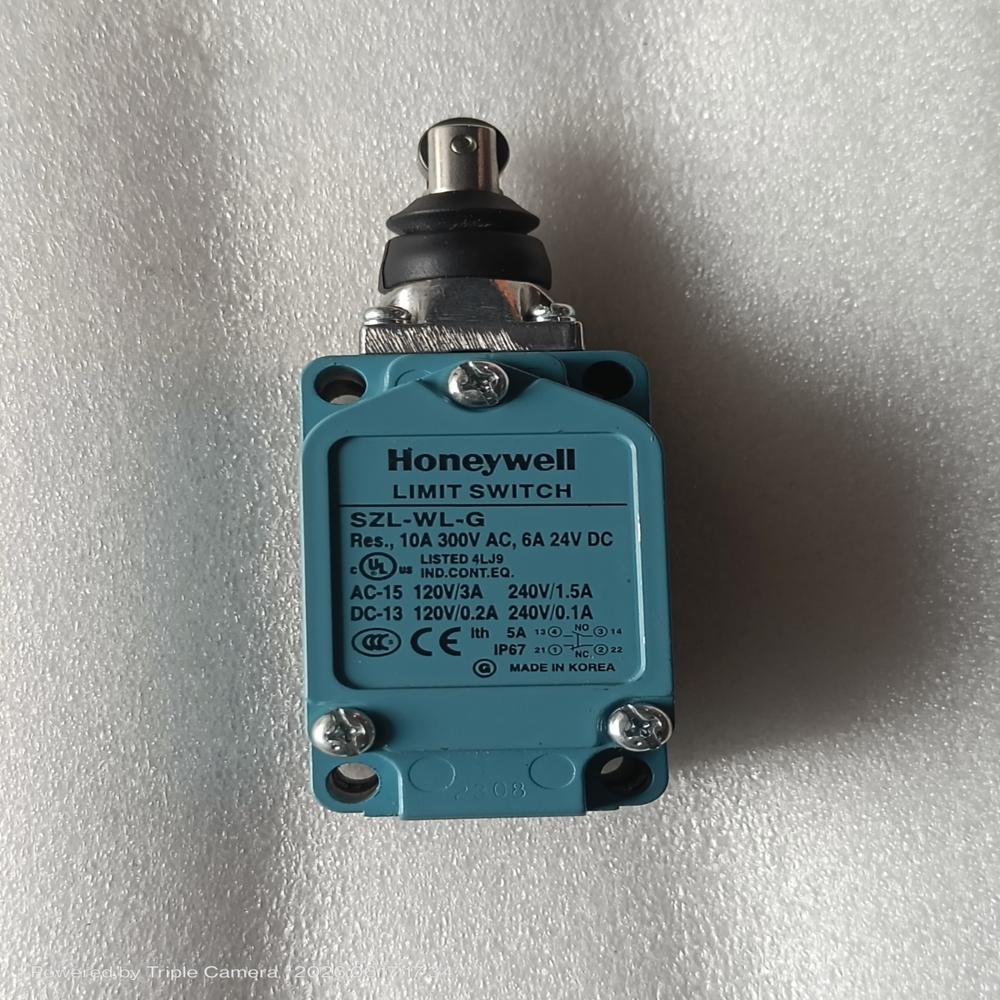

HONEYWELL SZL WL G LIMIT SWITCH

Name: HONEYWELL SZL WL G LIMIT SWITCH
Brand: MARUTI ENTERPRISE
Price: 100.0 INR
Availability: InStock

Price 100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HONEYWELL SZL WL G LIMIT SWITCH Specification

IP Rating
IP67

Usage & Applications
Industrial automation, machinery safety, control circuits, position sensing

Flow Rate
10A

Working Pressure
10 kgf/m2

Operating Temperature
-25C to +70C Celsius (oC)

Capacity
10A max Switch Rating Kg

Equipment Type
Position Sensing Device

Application Areas
Conveyor systems, machinery interlocking, process control

Product Type
Limit Switch

Type
Others

Material
Metal (enclosure & actuator)

Automatic Grade
Automatic

Control System
Electromechanical

Drive Type
Other

Weight (kg)
Approx. 0.25 kg Kilograms (kg)

Dimension (L*W*H)
Approx. 40mm x 40mm x 90mm Millimeter (mm)

Size
Standard compact enclosure

Surface Finishing
Powder coated/paint finished enclosure

Voltage
300V AC (max), 24V DC kilovolt (kV)

Features
Seal protection, snap-action contacts, replaceable actuator head, LED indication optional

Mounting Type
Panel mount, surface mount

Electrical Life
Minimum 500,000 operations at rated load

Approvals & Certification
UL, CE listed

Switch Action
Snap Action

Head Orientation
Rotatable and replaceable actuator head

Model Number
SZL-WL-G

Terminal Type
Screw terminal

Mechanical Life
Minimum 10 million operations

Contact Configuration
1NO+1NC (Single Pole Double Throw)

Ambient Humidity
35% to 95% RH (non-condensing)

Insulation Resistance
>100 M (500V DC)

HONEYWELL SZL WL G LIMIT SWITCH About

Purchase the hot-selling HONEYWELL SZL WL G LIMIT SWITCH and unlock invincible performance in industrial automation. Engineered for those seeking formidable reliability, this virtuoso device features snap action with single pole double throw configuration (1NO+1NC), rotatable and replaceable actuator head, and seal protection for IP67-rated ruggedness. Its robust metal enclosure, certified by UL and CE, ensures superior insulation resistance above 100 M and mechanical life over 10 million operations. Perfect for process control and machinery safety, this panel or surface mount switch operates in demanding environments, guaranteeing unbeatable control and peace of mind.

Targeted Industrial Applications and Benefits

The HONEYWELL SZL WL G LIMIT SWITCH is expertly crafted for industrial automation, machinery safety, and advanced control circuits. Used by manufacturers and operators of conveyor systems, automated machinery, and process control panels, it offers unmatched position sensing and formidable reliability. Its robust design ensures longevity and resilience in challenging conditions, making it a preferred choice for those demanding high-performance and safety in their industrial operations.

Shipping Details and Export Information

Shipping your HONEYWELL SZL WL G LIMIT SWITCH is seamless from the FOB port, ensuring the lowest price for bulk orders. With rapid processing and timely drop-off, expect your product to arrive promptly in major export markets globally. Whether you're located in Asia, Europe, or the Middle East, efficient delivery systems ensure products reach your site reliably, paving the way for uninterrupted industrial processes and installations.

FAQ's of HONEYWELL SZL WL G LIMIT SWITCH:

Q: How does the snap-action mechanism enhance the HONEYWELL SZL WL G LIMIT SWITCH's performance?

A: The snap-action mechanism provides fast and reliable switching, minimizing wear and extending operational life even during frequent use in demanding industrial environments.

Q: What industries typically use the HONEYWELL SZL WL G LIMIT SWITCH?

A: Industries such as manufacturing, process automation, machinery interlocking, and conveyor system operations are primary users due to the switch's durability and certified safety features.

Q: When should I replace the actuator head on this limit switch?

A: The actuator head should be replaced if there is any visible damage, wear, or if consistent operation is compromised, ensuring continued precise performance.

Q: Where is the best mounting location for this limit switch?

A: The switch can be panel or surface mounted in easily accessible areas requiring position sensing-commonly on machinery frames, conveyor endpoints, or safety interlock positions.

Q: What benefits does the IP67 rating provide for industrial environments?

A: An IP67 rating certifies full dust protection and resistance to temporary water immersion, keeping the device operational in harsh or wet conditions often found in industrial settings.

Q: How can I ensure proper installation and wiring of the limit switch?

A: Follow the manufacturer's guidelines, use the screw terminals for secure connections, and confirm correct wiring to prevent operational issues or false triggering in your control circuit.
